A Sanitation Drawing Index feature class has an attribute which holds the name of a pdf file containing the as-built construction drawings for the corresponding sewer line. However, over the years, this folder has not been maintained or updated. A Python script iterates through each record in the feature class and checks whether the corresponding pdf file exists in the folder. If it does then the file is copied to a new folder and deleted from the original folder. The end result is two folders. The original folder that contains all the old maps which have no corresponding feature in the feature class, and a new folder that only contains those maps that do have a corresponding feature in the feature class.

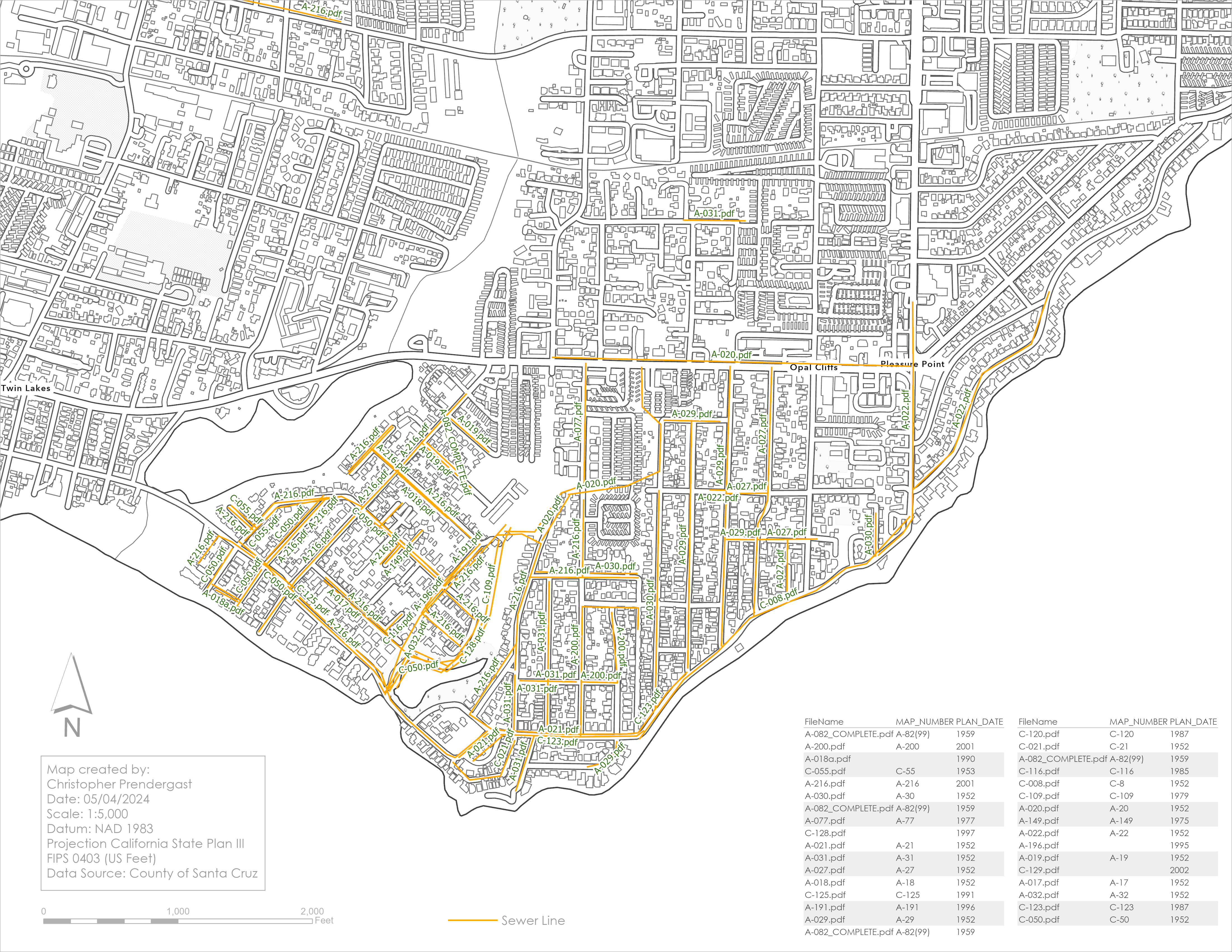

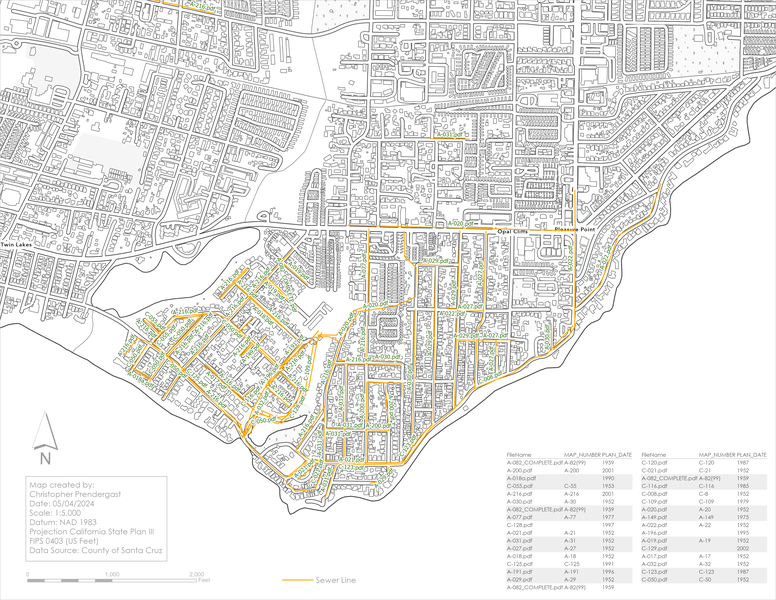

Sanitation Drawing Index
Python Code
# ----------------------------------------------------------------------------------------------------------------------
# santa_cruz_sanitation.py
# Christopher Prendergast
# 2024/05/04
# ----------------------------------------------------------------------------------------------------------------------
import arcpy
from pathlib import Path
from shutil import copytree
# Set project directory, geodatabase, feature class, field, and old/new pdf subdirectory names.
my_proj_dir = r"C:\ArcGIS_local_projects\Sanitation"
my_gdb = "SanitationData.gdb"
my_fc = "SanitationMapIndex"
my_field = "FileName"
my_old_pdf_subdir = "SanitationMaps"
my_new_pdf_subdir = "NewSanitationMaps"
my_save_pdf_subdir = "SanitationMapsSave"
line = "-" * 80
# Establish the old directory and check it exists.
old_dir = Path(my_proj_dir, my_old_pdf_subdir)
assert old_dir.is_dir(), "old_dir: {0} is not a directory or does not exist.".format(old_dir)
print("...old_dir", old_dir)
# Establish the save directory and create it if it doesn't already exist.
# Make a backup copy just in case!
save_dir = Path(my_proj_dir, my_save_pdf_subdir)
if not save_dir.is_dir():
copytree(old_dir, save_dir)
assert save_dir.is_dir(), "save_dir: {0} is not a directory or does not exist.".format(save_dir)
print("...save_dir:", save_dir)
# Establish the new directory and create it if it doesn't already exist.
new_dir = Path(my_proj_dir, my_new_pdf_subdir)
new_dir.mkdir(parents=True, exist_ok=True)
assert new_dir.is_dir(), "new_dir: {0} is not a directory or does not exist.".format(new_dir)
print("...new_dir:", new_dir)
# Establish the geodatabase and check it exists.
sanitation_gdb = Path(my_proj_dir, my_gdb)
assert sanitation_gdb.is_dir(), "sanitation_gdb: {0} is not a directory or does not exist.".format(sanitation_gdb)
print("...sanitation_gdb", sanitation_gdb)
# Establish the feature class.
fc = Path(sanitation_gdb, my_fc)
print("...fc:", fc)
# Check that the feature class exists.
arcpy.env.workspace = str(sanitation_gdb)
assert arcpy.Exists(str(fc)), "fc: feature class {0} does not exists".format(fc)
# Check that field exists.
fields = arcpy.ListFields(str(fc), my_field)
assert len(fields) == 1 and fields[0].name == my_field, "my_fields: field {0} not found".format(my_field)
print("...my_field:", my_field)
print(line)
# Establish empty lists to hold any files that are not found in the old directory or are duplicate references.
files_not_found = []
duplicate_file_refs = []
# Establish a search cursor.
cursor = arcpy.da.SearchCursor(str(fc), ["OID@", my_field])
# Iterate through records in cursor.
for row in cursor:
# Get the file name from the current record.
curr_id, curr_file = row
old_pdf_file = Path(old_dir, curr_file)
new_pdf_file = Path(new_dir, curr_file)
if old_pdf_file.is_file() and not new_pdf_file.is_file():
# If the file exists then move it to the new directory.
old_pdf_file.rename(new_pdf_file)
print("-->", "{0}: File {1} moved to {2}".format(curr_id, curr_file, new_pdf_file))
elif new_pdf_file.is_file():
# If thee file already exists in the target directory then add it to a list of duplicate references.
print("***", "{0}: Duplicate reference. File {1} already exists in {2}".format(curr_id, curr_file, new_dir))
duplicate_file_refs.append(curr_file)
else:
# Otherwise, if the file is not found, add it to the list of missing files.
print("***", "{0}: file {1} not found.".format(curr_id, old_pdf_file))
files_not_found.append(old_pdf_file)
# Print list files in the save directory.
print()
print(line)
print("Files in the save directory {0}".format(save_dir))
print(line)
n = 0
for f in save_dir.iterdir():
print("\t{0}".format(f.name))
n += 1
print("Total number of files in the save directory: {0}".format(n))
# Print list of file references where the file was not found in the original directory.
print()
print(line)
print("Files not found in original directory {0}".format(old_dir))
print(line)
n = 0
for f in files_not_found:
print("\t{0}".format(f.name))
n += 1
print("Total number of file references not found in original directory: {0}".format(n))
# Print list of duplicate file references.
print()
print(line)
print("Duplicate file reference where the same file has already been moved.")
print(line)
n = 0
for f in duplicate_file_refs:
print("\t{0}".format(f))
n += 1
print("Total number of duplicate file references: {0}".format(n))
# Print list of files that remain in the original directory.
print()
print(line)
print("Files remaining in the original directory after move {0}".format(old_dir))
print(line)
n = 0
for f in old_dir.iterdir():
print("\t{0}".format(f.name))
n += 1
print("Total number of files remaining in the original directory after move: {0}".format(n))
# Print list of files found in the new directory.
print()
print(line)
print("Files found in new directory after move {0}".format(new_dir))
print(line)
n = 0
for f in new_dir.iterdir():
print("\t{0}".format(f.name))
n += 1
print("Total number of files found in new directory after move: {0}".format(n))
# ----------------------------------------------------------------------------------------------------------------------
# Output
# ----------------------------------------------------------------------------------------------------------------------
# "C:\Program Files\ArcGIS\Pro\bin\Python\envs\arcgispro-py3\python.exe" C:\PythonPro\Ex11\sanitation.py
# ...old_dir C:\ArcGIS_local_projects\Sanitation\SanitationMaps
# ...save_dir: C:\ArcGIS_local_projects\Sanitation\SanitationMapsSave
# ...new_dir: C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps
# ...sanitation_gdb C:\ArcGIS_local_projects\Sanitation\SanitationData.gdb
# ...fc: C:\ArcGIS_local_projects\Sanitation\SanitationData.gdb\SanitationMapIndex
# ...my_field: FileName
# --------------------------------------------------------------------------------
# --> 1: File A-082_COMPLETE.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-082_COMPLETE.pdf
# --> 2: File A-200.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-200.pdf
# --> 4: File A-018a.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-018a.pdf
# --> 7: File C-055.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\C-055.pdf
# --> 9: File A-216.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-216.pdf
# --> 11: File A-030.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-030.pdf
# *** 12: Duplicate reference. File A-082_COMPLETE.pdf already exists in C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps
# --> 14: File A-077.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-077.pdf
# --> 15: File C-128.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\C-128.pdf
# --> 16: File A-021.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-021.pdf
# --> 18: File A-031.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-031.pdf
# --> 19: File A-027.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-027.pdf
# --> 21: File A-018.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-018.pdf
# --> 22: File C-125.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\C-125.pdf
# --> 23: File A-191.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-191.pdf
# --> 25: File A-029.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-029.pdf
# *** 26: Duplicate reference. File A-082_COMPLETE.pdf already exists in C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps
# --> 28: File C-120.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\C-120.pdf
# --> 29: File C-021.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\C-021.pdf
# *** 31: Duplicate reference. File A-082_COMPLETE.pdf already exists in C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps
# --> 32: File C-116.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\C-116.pdf
# --> 34: File C-008.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\C-008.pdf
# --> 35: File C-109.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\C-109.pdf
# --> 36: File A-020.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-020.pdf
# --> 37: File A-149.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-149.pdf
# --> 38: File A-022.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-022.pdf
# --> 39: File A-196.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-196.pdf
# --> 40: File A-019.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-019.pdf
# --> 42: File C-129.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\C-129.pdf
# --> 43: File A-017.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-017.pdf
# --> 44: File A-032.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\A-032.pdf
# --> 45: File C-123.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\C-123.pdf
# --> 46: File C-050.pdf moved to C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps\C-050.pdf
#
# --------------------------------------------------------------------------------
# Files in the save directory C:\ArcGIS_local_projects\Sanitation\SanitationMapsSave
# --------------------------------------------------------------------------------
# A-017.pdf
# A-018.pdf
# A-018a.pdf
# A-019.pdf
# A-020.pdf
# A-021.pdf
# A-022.pdf
# A-024.pdf
# A-025.pdf
# A-026.pdf
# A-027.pdf
# A-029.pdf
# A-030.pdf
# A-031.pdf
# A-032.pdf
# A-034.pdf
# A-036.pdf
# A-037.pdf
# A-039.pdf
# A-040..pdf
# A-043.pdf
# A-044.pdf
# A-048.pdf
# A-050.pdf
# A-051.pdf
# A-053.pdf
# A-054.pdf
# A-056.pdf
# A-059.pdf
# A-061.pdf
# A-062.pdf
# A-063.pdf
# A-064.pdf
# A-065.pdf
# A-067.pdf
# A-068.pdf
# A-069.pdf
# A-070.pdf
# A-072.pdf
# A-073.pdf
# A-074.pdf
# A-075.pdf
# A-076.pdf
# A-077.pdf
# A-078.pdf
# A-082_COMPLETE.pdf
# A-149.pdf
# A-150.pdf
# A-151.pdf
# A-186.pdf
# A-187.pdf
# A-188.pdf
# A-189.pdf
# A-190.pdf
# A-191.pdf
# A-194.pdf
# A-195.pdf
# A-196.pdf
# A-197.pdf
# A-198.pdf
# A-200.pdf
# A-202.pdf
# A-209.pdf
# A-210.pdf
# A-211.pdf
# A-212.pdf
# A-212B.pdf
# A-213.pdf
# A-213B.pdf
# A-214.pdf
# A-215.pdf
# A-216.pdf
# A-217.pdf
# A-218.pdf
# A-219.pdf
# A-220.pdf
# A-78.pdf
# C-001A.pdf
# C-008.pdf
# C-021.pdf
# C-050.pdf
# C-055.pdf
# C-108A.pdf
# C-109.pdf
# C-110.pdf
# C-110A.pdf
# C-111.pdf
# C-112.pdf
# C-113.pdf
# C-114.pdf
# C-115.pdf
# C-116.pdf
# C-117.pdf
# C-118.pdf
# C-119.pdf
# C-120.pdf
# C-121.pdf
# C-122.pdf
# C-123.pdf
# C-124.pdf
# C-125.pdf
# C-126.pdf
# C-127.pdf
# C-128.pdf
# C-129.pdf
# C-130.pdf
# Total number of files in the save directory: 106
#
# --------------------------------------------------------------------------------
# Files not found in original directory C:\ArcGIS_local_projects\Sanitation\SanitationMaps
# --------------------------------------------------------------------------------
# Total number of file references not found in original directory: 0
#
# --------------------------------------------------------------------------------
# Duplicate file reference where the same file has already been moved.
# --------------------------------------------------------------------------------
# A-082_COMPLETE.pdf
# A-082_COMPLETE.pdf
# A-082_COMPLETE.pdf
# Total number of duplicate file references: 3
#
# --------------------------------------------------------------------------------
# Files remaining in the original directory after move C:\ArcGIS_local_projects\Sanitation\SanitationMaps
# --------------------------------------------------------------------------------
# A-024.pdf
# A-025.pdf
# A-026.pdf
# A-034.pdf
# A-036.pdf
# A-037.pdf
# A-039.pdf
# A-040..pdf
# A-043.pdf
# A-044.pdf
# A-048.pdf
# A-050.pdf
# A-051.pdf
# A-053.pdf
# A-054.pdf
# A-056.pdf
# A-059.pdf
# A-061.pdf
# A-062.pdf
# A-063.pdf
# A-064.pdf
# A-065.pdf
# A-067.pdf
# A-068.pdf
# A-069.pdf
# A-070.pdf
# A-072.pdf
# A-073.pdf
# A-074.pdf
# A-075.pdf
# A-076.pdf
# A-078.pdf
# A-150.pdf
# A-151.pdf
# A-186.pdf
# A-187.pdf
# A-188.pdf
# A-189.pdf
# A-190.pdf
# A-194.pdf
# A-195.pdf
# A-197.pdf
# A-198.pdf
# A-202.pdf
# A-209.pdf
# A-210.pdf
# A-211.pdf
# A-212.pdf
# A-212B.pdf
# A-213.pdf
# A-213B.pdf
# A-214.pdf
# A-215.pdf
# A-217.pdf
# A-218.pdf
# A-219.pdf
# A-220.pdf
# A-78.pdf
# C-001A.pdf
# C-108A.pdf
# C-110.pdf
# C-110A.pdf
# C-111.pdf
# C-112.pdf
# C-113.pdf
# C-114.pdf
# C-115.pdf
# C-117.pdf
# C-118.pdf
# C-119.pdf
# C-121.pdf
# C-122.pdf
# C-124.pdf
# C-126.pdf
# C-127.pdf
# C-130.pdf
# Total number of files remaining in the original directory after move: 76
#
# --------------------------------------------------------------------------------
# Files found in new directory after move C:\ArcGIS_local_projects\Sanitation\NewSanitationMaps
# --------------------------------------------------------------------------------
# A-017.pdf
# A-018.pdf
# A-018a.pdf
# A-019.pdf
# A-020.pdf
# A-021.pdf
# A-022.pdf
# A-027.pdf
# A-029.pdf
# A-030.pdf
# A-031.pdf
# A-032.pdf
# A-077.pdf
# A-082_COMPLETE.pdf
# A-149.pdf
# A-191.pdf
# A-196.pdf
# A-200.pdf
# A-216.pdf
# C-008.pdf
# C-021.pdf
# C-050.pdf
# C-055.pdf
# C-109.pdf
# C-116.pdf
# C-120.pdf
# C-123.pdf
# C-125.pdf
# C-128.pdf
# C-129.pdf
# Total number of files found in new directory after move: 30
#
# Process finished with exit code 0
# ----------------------------------------------------------------------------------------------------------------------
